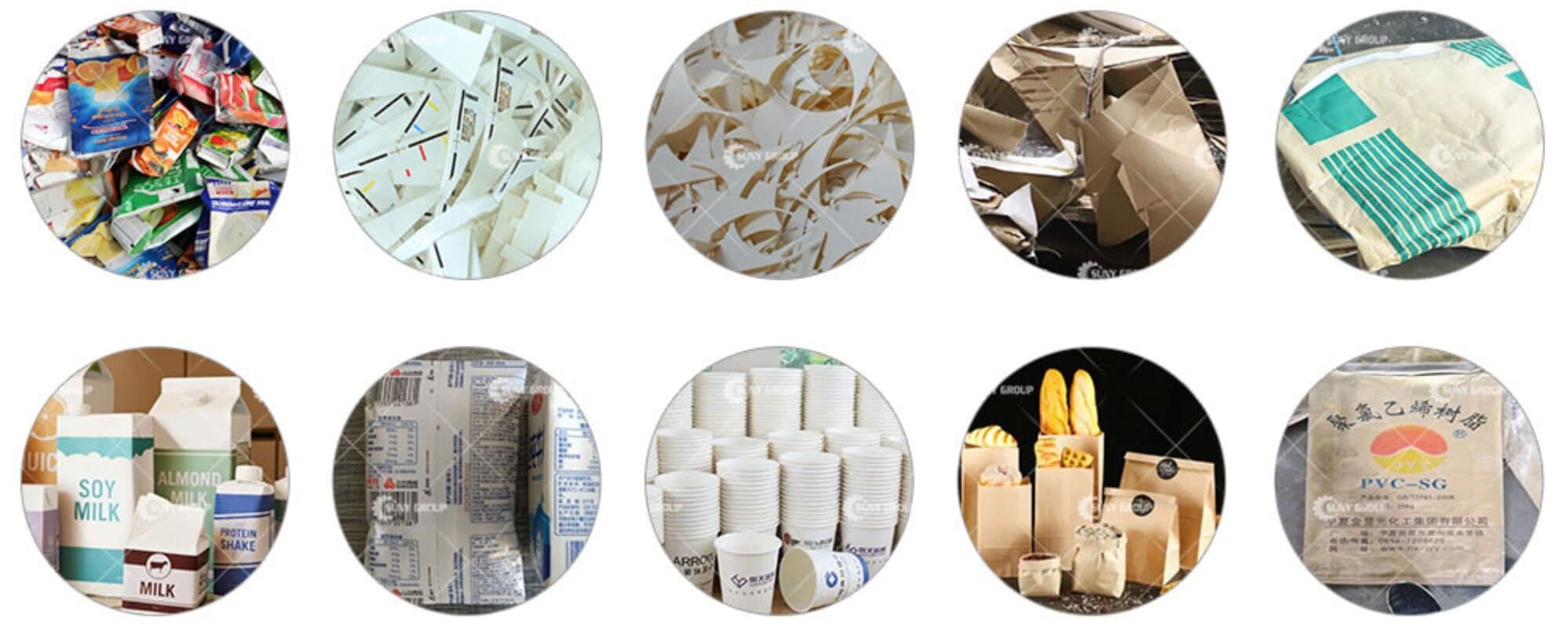

This recycling system is suitable for processing a wide range of paper-plastic composite materials, including beverage cartons, milk bags, paper cups, PE-coated paper, kraft paper bags, composite woven bags, and paper mill waste. It can also handle label paper and paper-plastic packaging waste, efficiently separating paper fibers from plastic or aluminum layers to produce high-purity pulp and reusable plastic film for further utilization.

With over 20 years of experience in developing and producing paper–plastic recycling equipment, our factory offers complete customized recycling solutions. Every system is professionally designed, thoroughly tested, and supported by a dedicated technical team to ensure optimal performance. We are committed to providing global customers with efficient, eco-friendly, and profitable recycling technologies.

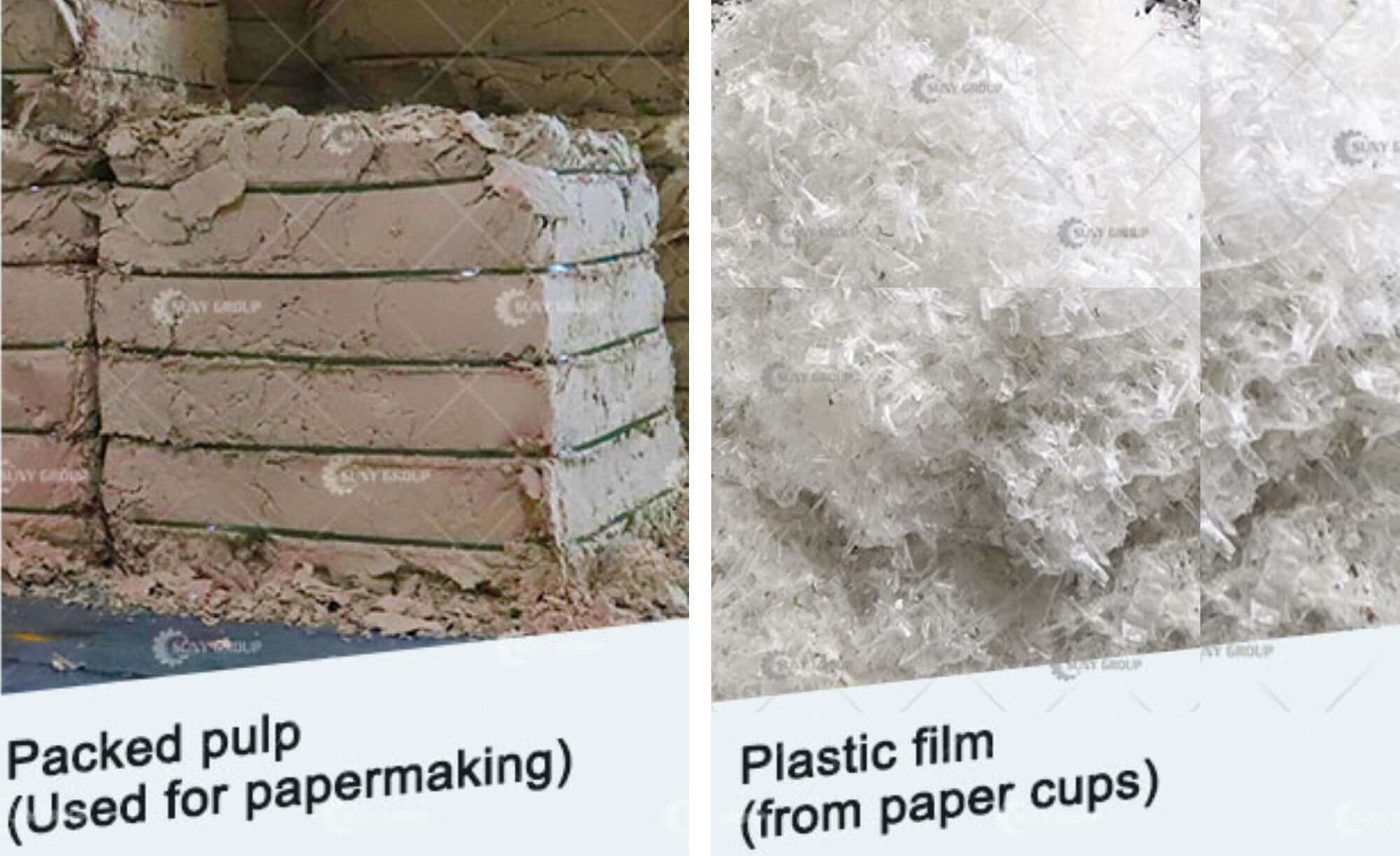

The Paper-Plastic Recycling Machine is an innovative and eco-friendly solution designed to efficiently separate and recover paper pulp and plastic film from various composite materials such as beverage cartons, milk bags, coated paper, and packaging waste. With a fully automated process combining separation, purification, dewatering, and filtration, it transforms mixed waste into high-value recycled pulp and clean plastic flakes. Featuring stable performance, low energy consumption, and customizable configurations, this system helps recycling plants and paper mills achieve profitable, zero-pollution, and sustainable production.

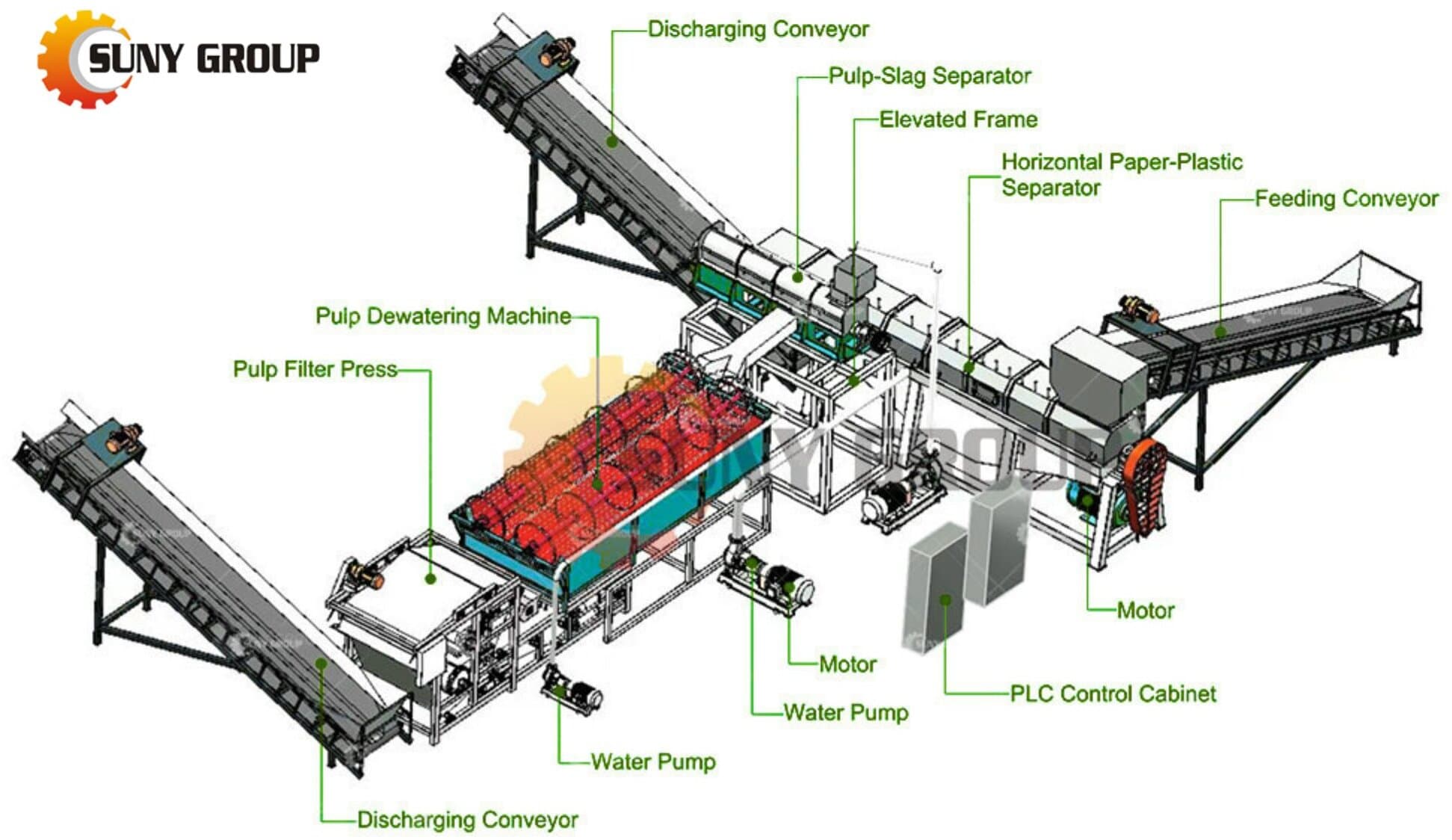

The Paper-Plastic Recycling Machine consists of a Feeding Conveyor, Horizontal Paper-Plastic Separator, Elevated Frame, Pulp-Slag Separator, Pulp Dewatering Machine, Pulp Filter Press, Discharging Conveyor, dual water pumps, and a PLC Control Cabinet. During operation, materials are fed into the separator for initial paper–plastic separation, then impurities and residual fibers are removed in the pulping stage. The refined pulp passes through the dewatering machine and filter press to form high-dryness pulp cakes, while clean plastic flakes are discharged separately. The entire process is fully automated, efficient, and stable, ensuring consistent output of reusable paper and plastic materials.

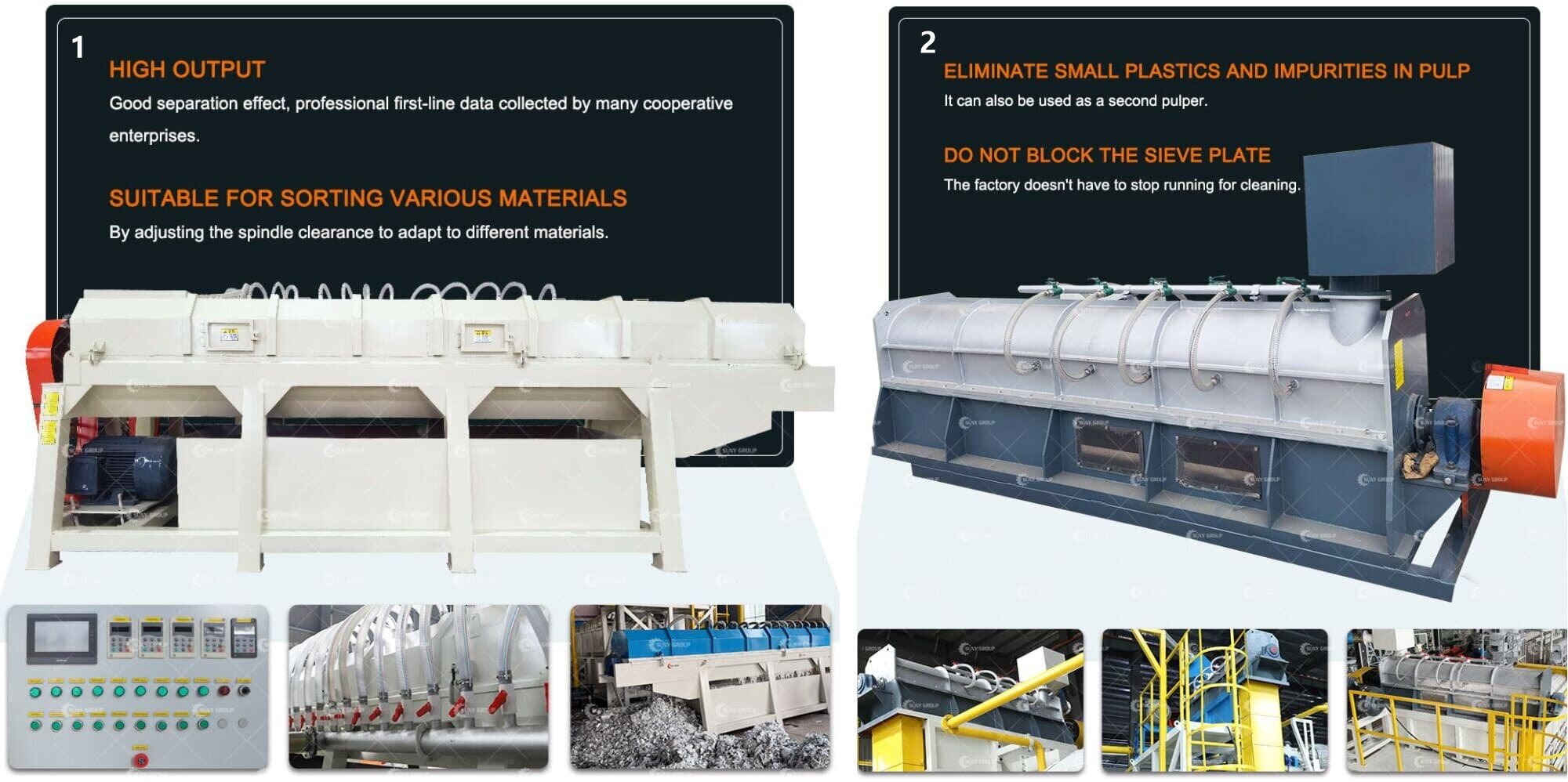

1.Paper Aluminum Separator
It is the main equipment of the production line. The working principle is that the motor drives the spindle to rotate at high speed. The spindle blade drives the material to move from the feeding end to the discharging end. After years of research and development experience and cooperative development by cooperative manufacturers, water mixing and spindle sieve plate friction separation are adopted according to the characteristics of paper-plastic composite and paper-plastic mixture. This paper-plastic separator has passed through many cooperative manufacturers and customers.

2.Pulp-slag Separator
In the pulping of waste paper, because of the different paper quality of waste paper, there is a large amount of slag. This machine can remove light and heavy sundries and decompose small pieces of paper in fibers, without blocking the sieve plate, and hard sundries will not hurt the sieve plate. The factory does not have to stop running for cleaning frequently, and it can also be used as a second pulping machine.It is mainly used for sorting tail pulp after fiber separator and pressure screen; The treated and sorted slurry is directly returned to the fiber separator or the slurry pool in front of the pressure screen for reuse.After sortingThe tailigs do not contain fiber, which meets the emission requirements of environmental protection.

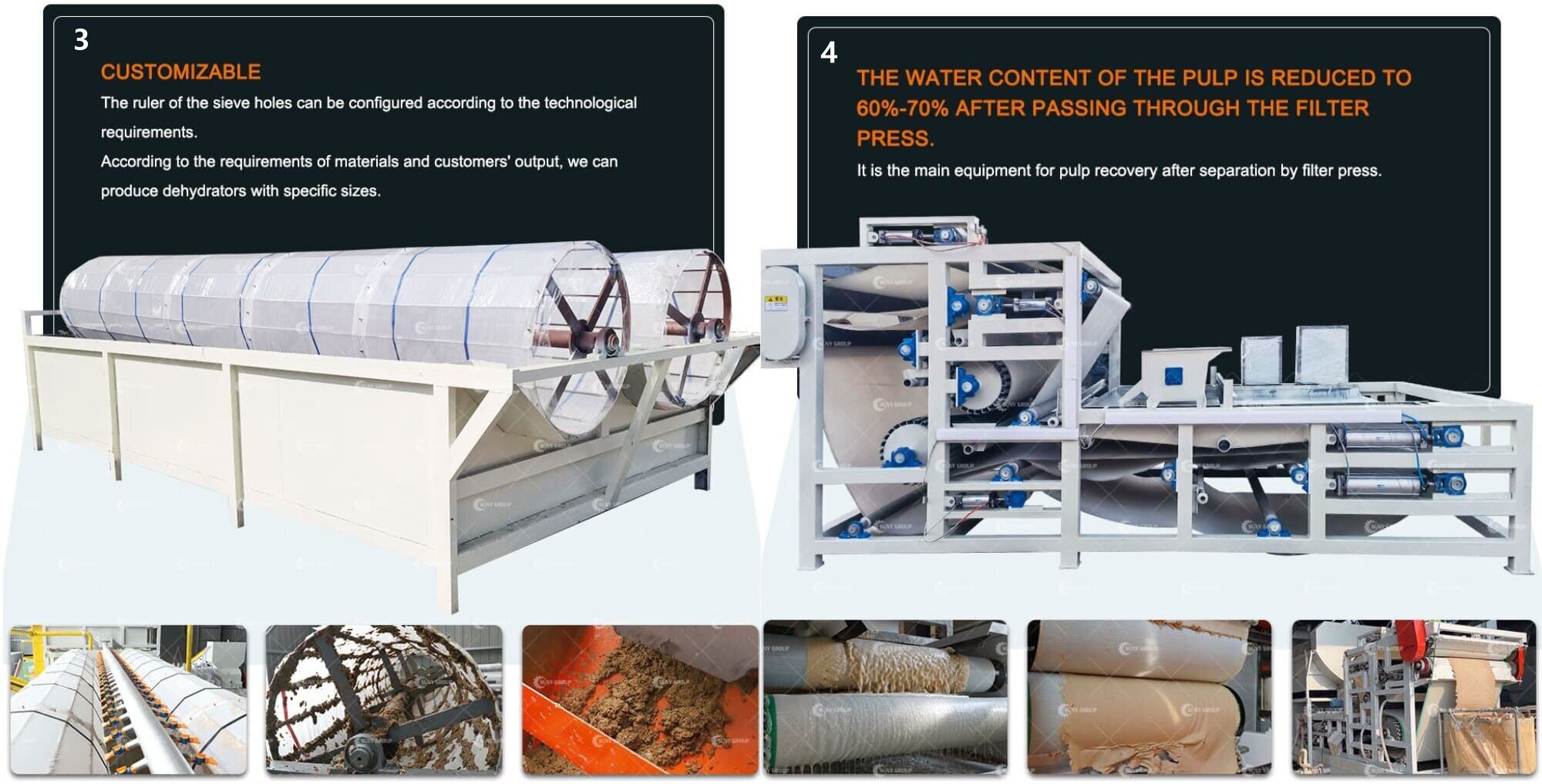

3.Pulp Dewatering Machine
The basic working principle of the pulp dehydato is: the particles rotate to a certain height with the drum, are thrown and fall by gravity, and are filtered through the screen to form a sieve. The roller screen is shaft driven, and the screen is steel wire woven net or high toughness nylon woven net. The ruler of the sieve holes can be configured according to the technological requirements.

4.Pulp Filter Press
Pulp filter press is a mechanical equipment designed for the recycling of pulp separated by paper-plastic separator. The pulp filter press uses the motor to drive the spindle to run and drive the polyester blanket. The pulp is transported to the filter press by the pump and evenly flows onto the polyester blanket. After being driven by the polyester blanket, it is squeezed between two layers of polyester blankets, and then squeezed and compacted by multiple pressing rollers, thus making cardboard for secondary uilization. The filtered clear water can be pumped by a water pump for recycling, thus reducing emissions and saving resources.
